A Tool-Free Adjustable Mount Built to Hold Its Position
A pinch-lock ball-and-socket mount for fixturing, sensor and camera positioning, and equipment mounting on standard T-slot/8020 rail. Six configurations across two material lines, each shipping as a matched set.
High-Speed Camera & Lighting Rigs

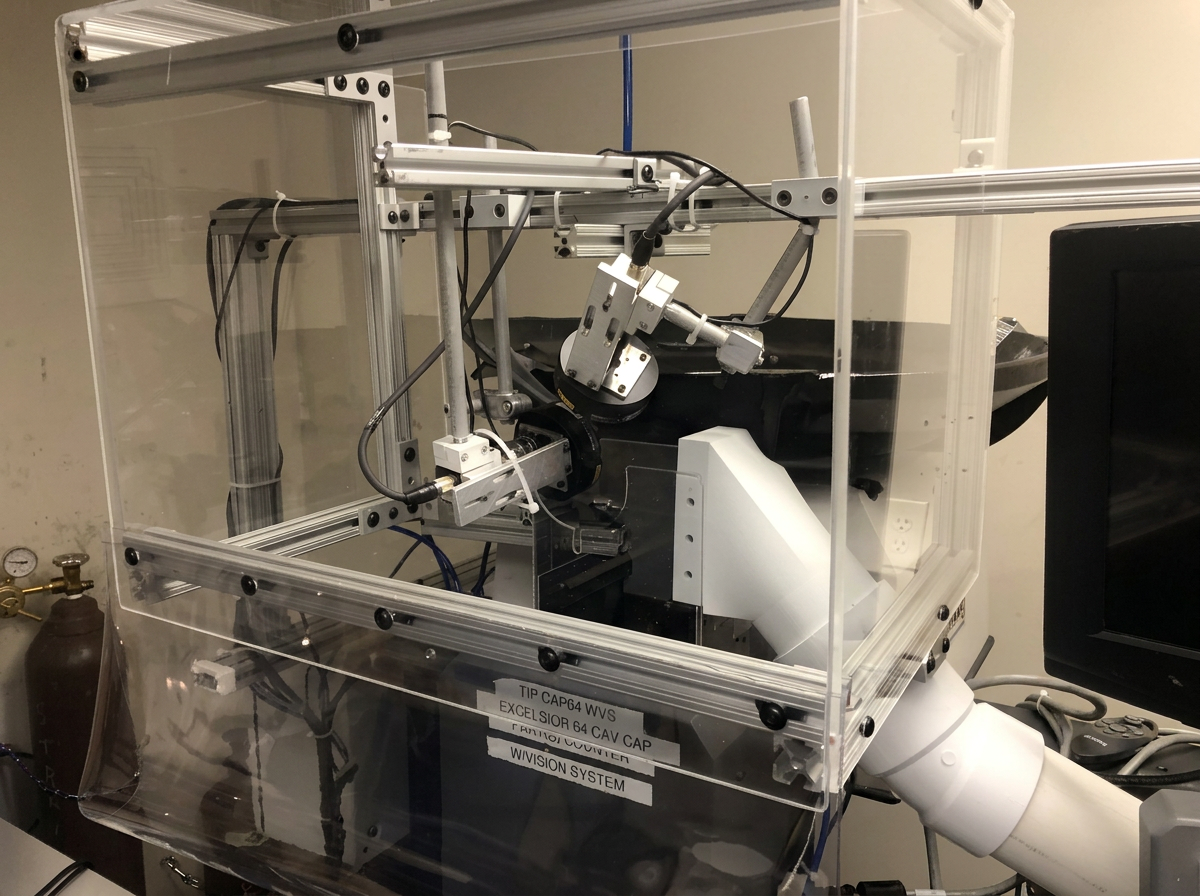

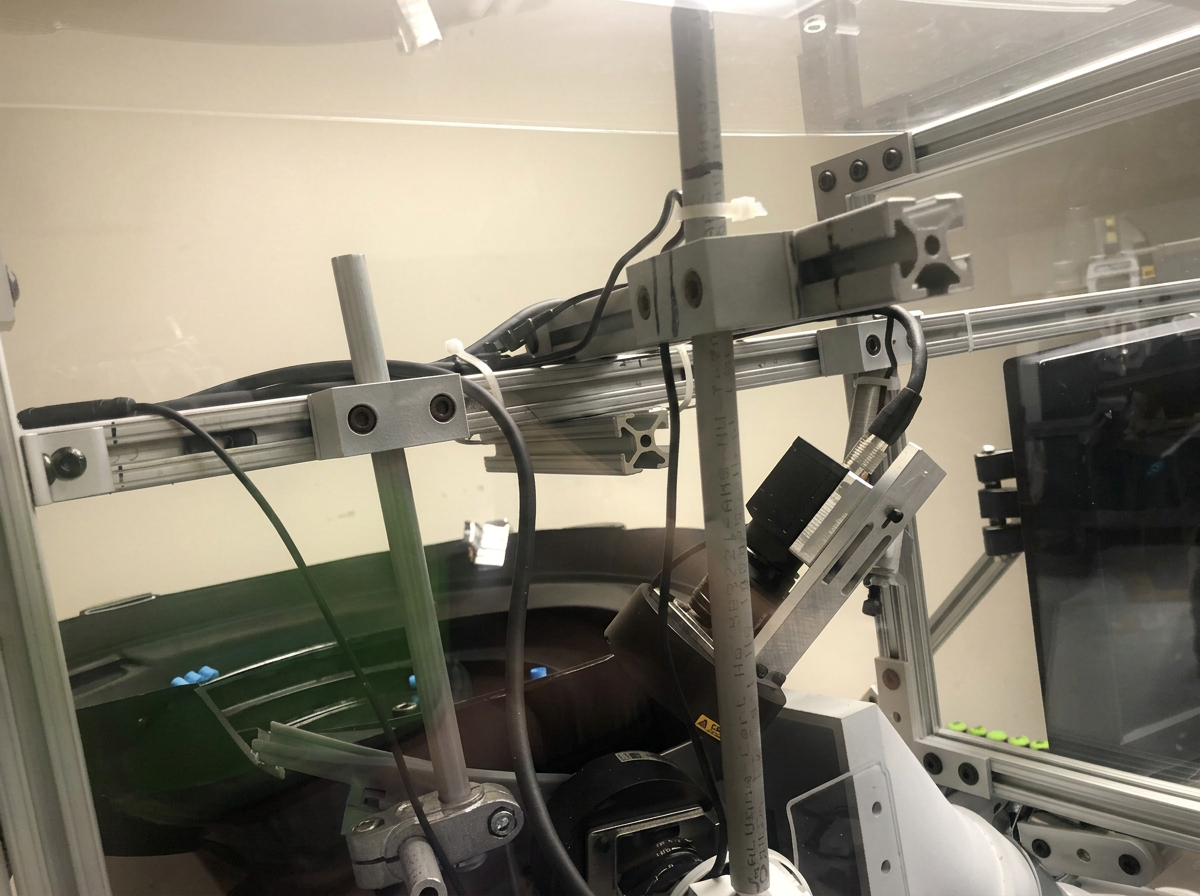

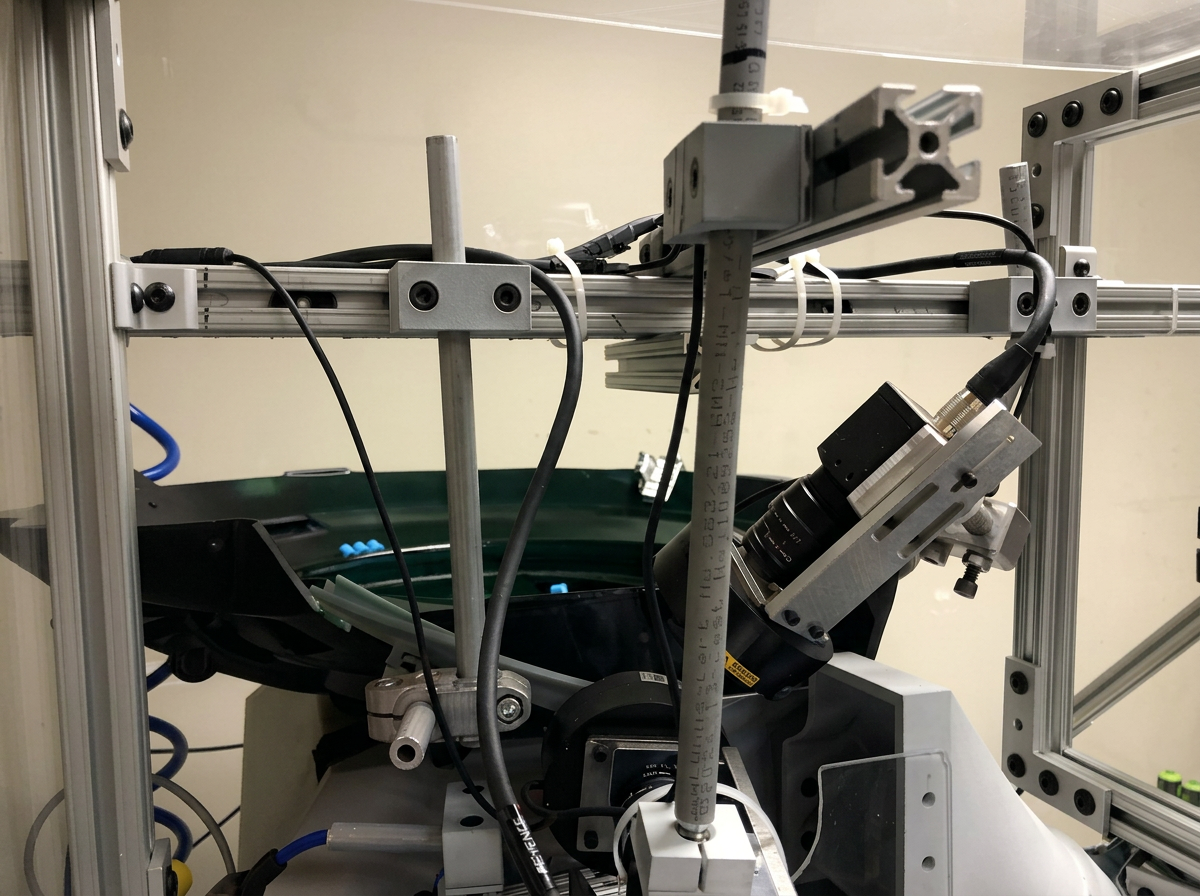

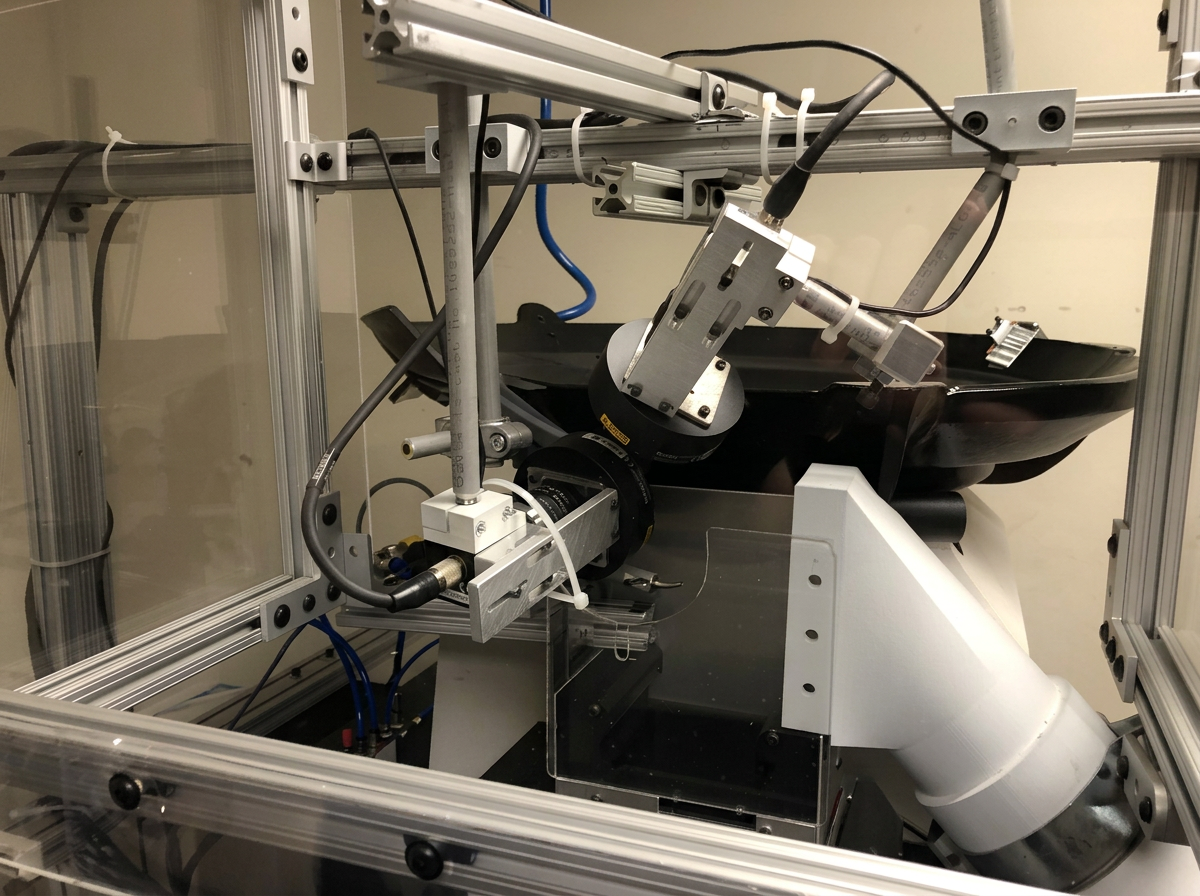

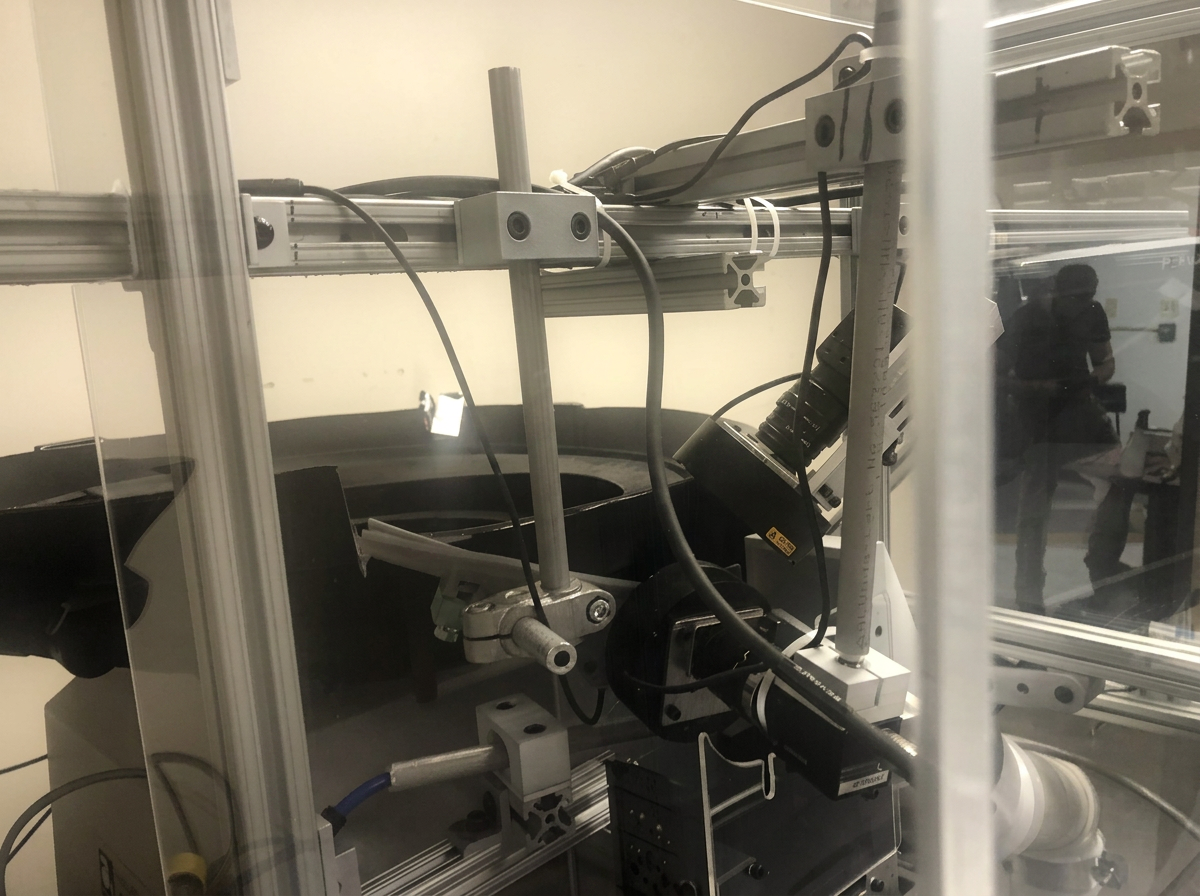

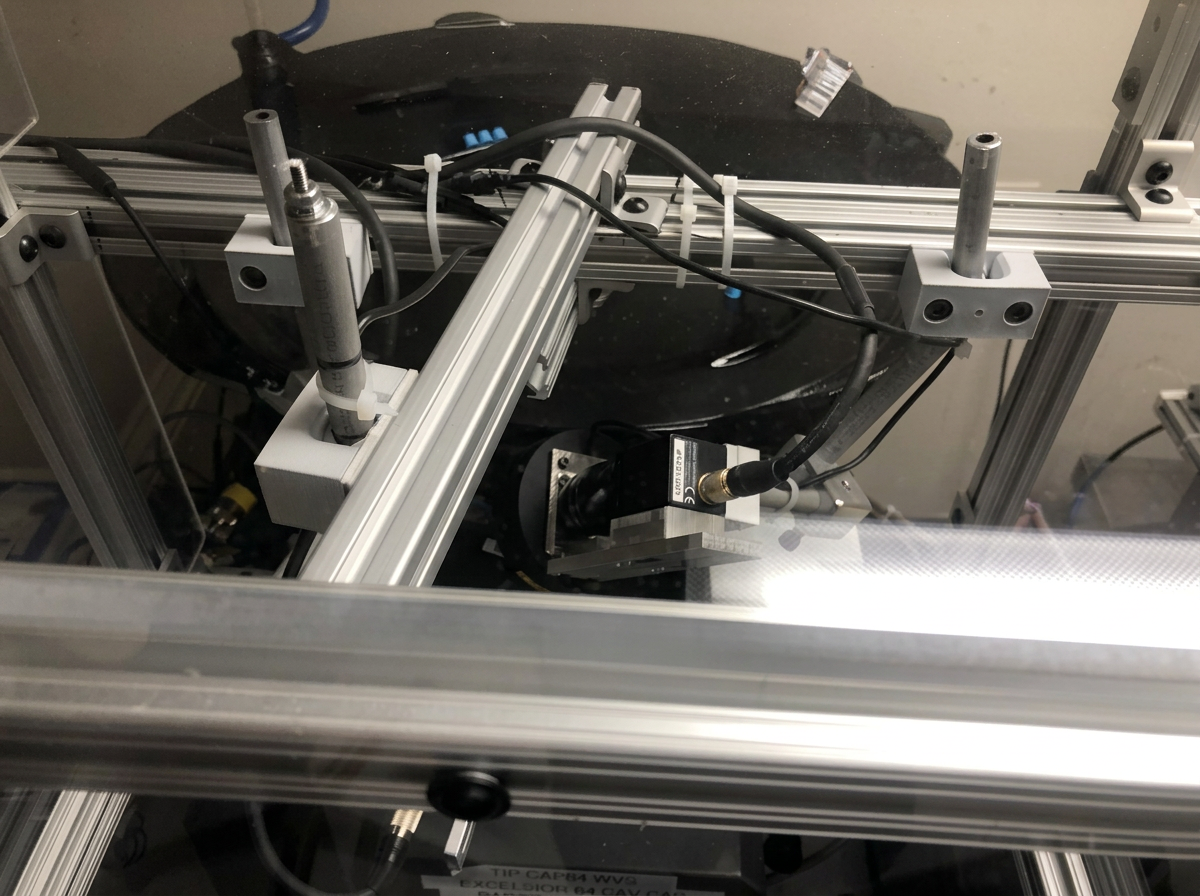

Originally designed for mounting high-speed cameras and lights inside automation cells, where the multi-axis lock lets four units fit in the space a single bulky competitor mount would take, with camera, lens, and light co-located in the same tight footprint.
Test & Inspection Fixturing
Lock a probe, gauge, or inspection camera at a fixed angle on the test bench, then swing it out of the way between cycles. The pinch-lock holds position through repeated setups without walking or needing to be re-zeroed.
Machine Vision & Sensor Mounting
Dial in the exact line of sight a vision camera or proximity sensor needs, straight off standard T-slot rail, with no machined brackets or one-off fixturing needed to get the angle right.
Pinch, Angle, Lock. No Drift Under Load.

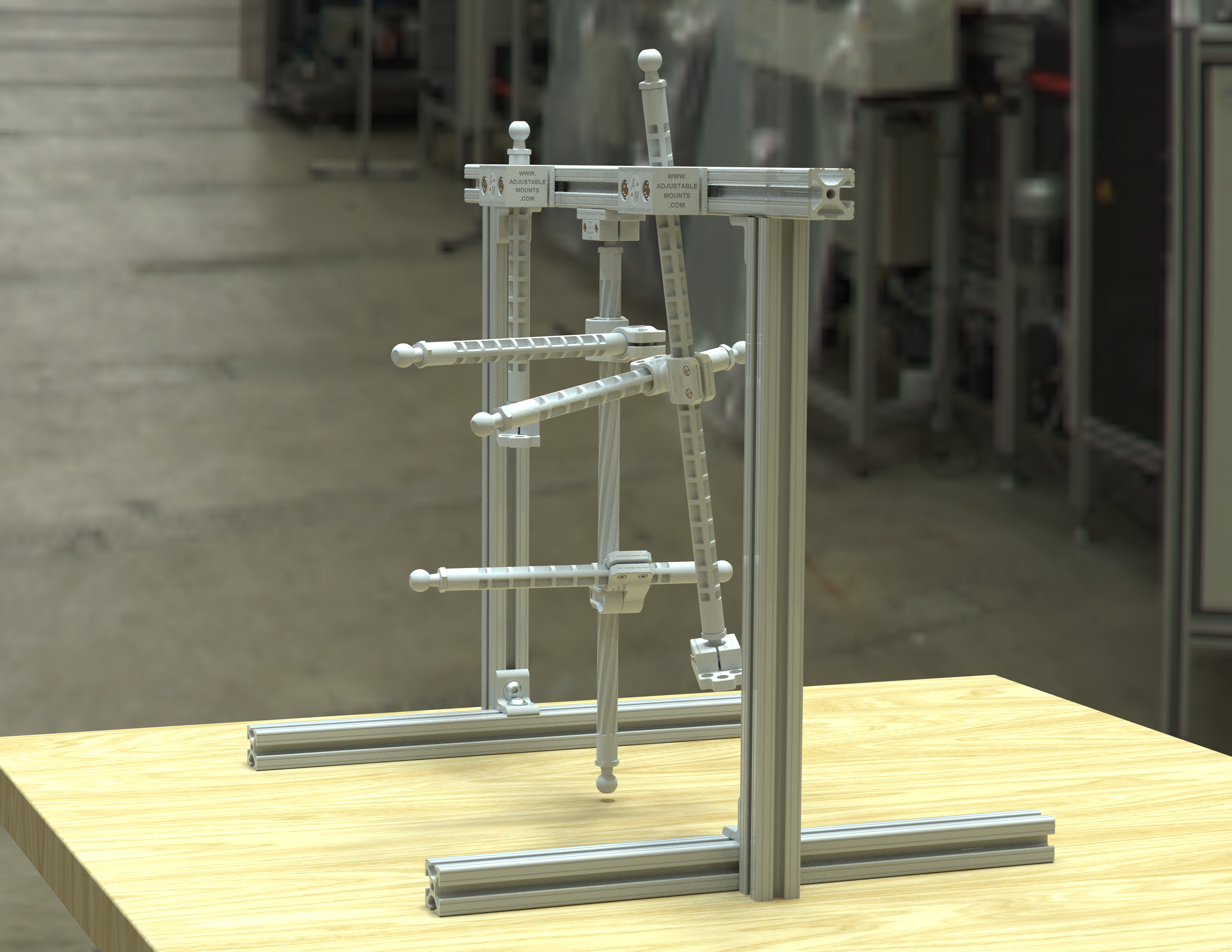

Adjustable Mounts clamps to standard T-slot/8020 rail (any common profile size, via a standard T-nut) and holds any angle you set by hand, with no hex keys required. A rod extends out to a universal ball-socket bracket that swivels freely in any direction until you tighten it down, so you set rotation, pitch, and height in one motion instead of adjusting three separate joints.
Compare that to a typical single-axis T-slot pivot (e.g. McMaster-Carr part 47065T221), which only moves on one axis by tightening a bolt. Adjustable Mounts' multi-axis lock lets four units fit in the footprint one bulky single-axis mount would take, which is useful anywhere you're positioning cameras, sensors, or lighting close together on a rig or automation cell.
Automation & Robotics
Positioned once. Never touched again. Sensors, end-of-arm tooling, and safety switches all need to sit exactly where the process calls for it, not wherever the last person happened to leave them.
What You're Working With
Rail compatibility, rod options, and locking mechanism at a glance.
| Rail Compatibility | Standard T-slot/8020-style extrusion via a standard T-nut: any common profile size (1″×1″ up to 3″×3″, double/triple-wide). Also mounts to a flat wall via two tapped holes, independent of rail. |
|---|---|
| Rod Length | 6″ and 12″ standard at launch, selected independent of kit/material choice. An 18″ option is planned, with room to grow up to 24″ as demand requires. |
| Load Rating | Not a published number by design: capacity depends on rod diameter, length, and configuration (rod scales from ½″ up to 2″+ in diameter). Contact us to discuss your specific load. |
| Adjustment Range | Multi-axis: rotate, pitch, and height, all tool-free. |
| Material / Finish | Plastic line: HP Multi Jet Fusion 3D-printed Nylon 12, black. Aluminum line: aluminum hardware for added rigidity. |
| Locking Mechanism | Hand-tightened ball-and-socket pinch lock, no tools required |
| Lead Time | Contact us for current lead time. |
Six Configurations, Matched Sets
Adjustable Mounts ships across six configurations: two material lines (nylon or aluminum hardware), each available as a base kit or with a fixed or adjustable 90° mount, in 6″ or 12″ rod lengths (more lengths planned); every configuration ships as a matched set, unassembled with hardware bagged separately, not separable parts. Order 2 or more to unlock volume pricing. Full online ordering is coming soon; for lead time or a production-quantity order in the meantime, contact us directly.
Common Questions
The plastic line (HP Multi Jet Fusion 3D-printed Nylon 12, black) is lighter and sized for cameras, sensors, and lighting. The aluminum line swaps in aluminum rod and ball-stud hardware for extra rigidity on longer reaches or heavier equipment.
Standard T-slot/8020-style rail via a standard T-nut, across common profile sizes. The universal mounting bracket end also works on a flat wall with two tapped holes, independent of rail.
We don't publish a maximum load spec: it depends on rod diameter, length, and configuration. Once hand-tightened, the pinch lock holds its set position under vibration and repeated repositioning. Contact us to talk through your specific application.
Standard rod lengths are 6″ and 12″ at launch (an 18″ option is planned, with room to grow up to 24″), and the rod itself scales from ½″ up to 2″+ in diameter. Custom colors are available at MOQ with premium pricing (black is standard at launch). Contact us for volume and custom-spec pricing.
No, every configuration ships unassembled, with all hardware bagged separately, to keep packaging compact. Assembly is quick and only requires a 3/32″ hex/Allen wrench.
Yes, volume pricing starts at 2 units. Contact us for current volume rates.
