Adjustable Mounts
Lock It. Angle It. Never Touch It Again.
A tool-free, pinch-lock adjustable mount for cameras, lights, and sensors that need to stay exactly where you put them: six kit configurations across two material lines.
Skip to main content
About the Kit
Mounting & Positioning Hardware for T-Slot Rigs

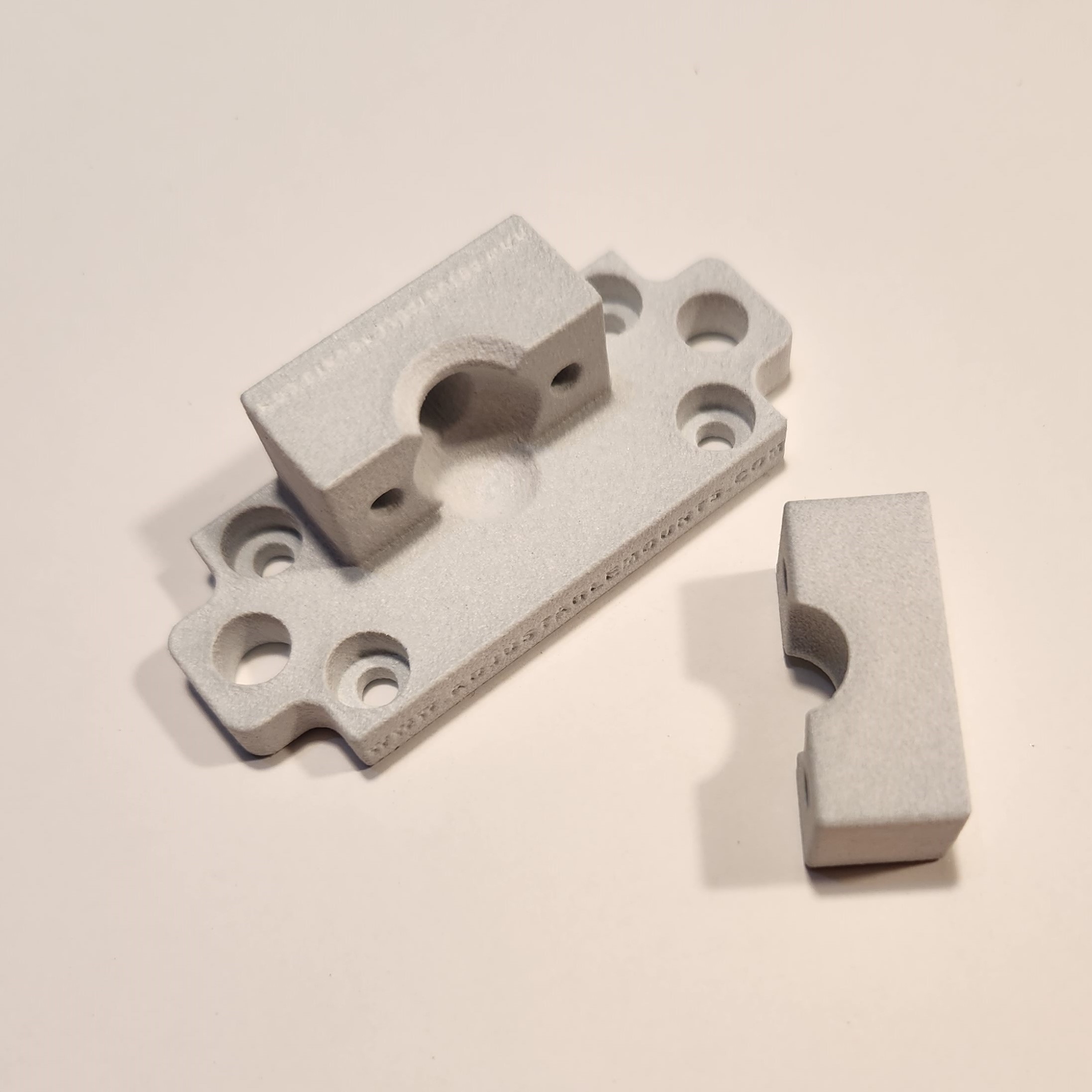

Standard mounting hardware for T-slot and 8020 rail tends to be bulky, limited in range of motion, or requires tools every time you need to reposition something. Adjustable Mounts is NPDC's answer: a rail bracket clamps to your T-slot rail, a rod extends out to your equipment, and a universal ball-socket bracket on the far end swivels freely in any direction until you tighten it down, with no tools needed after initial setup.

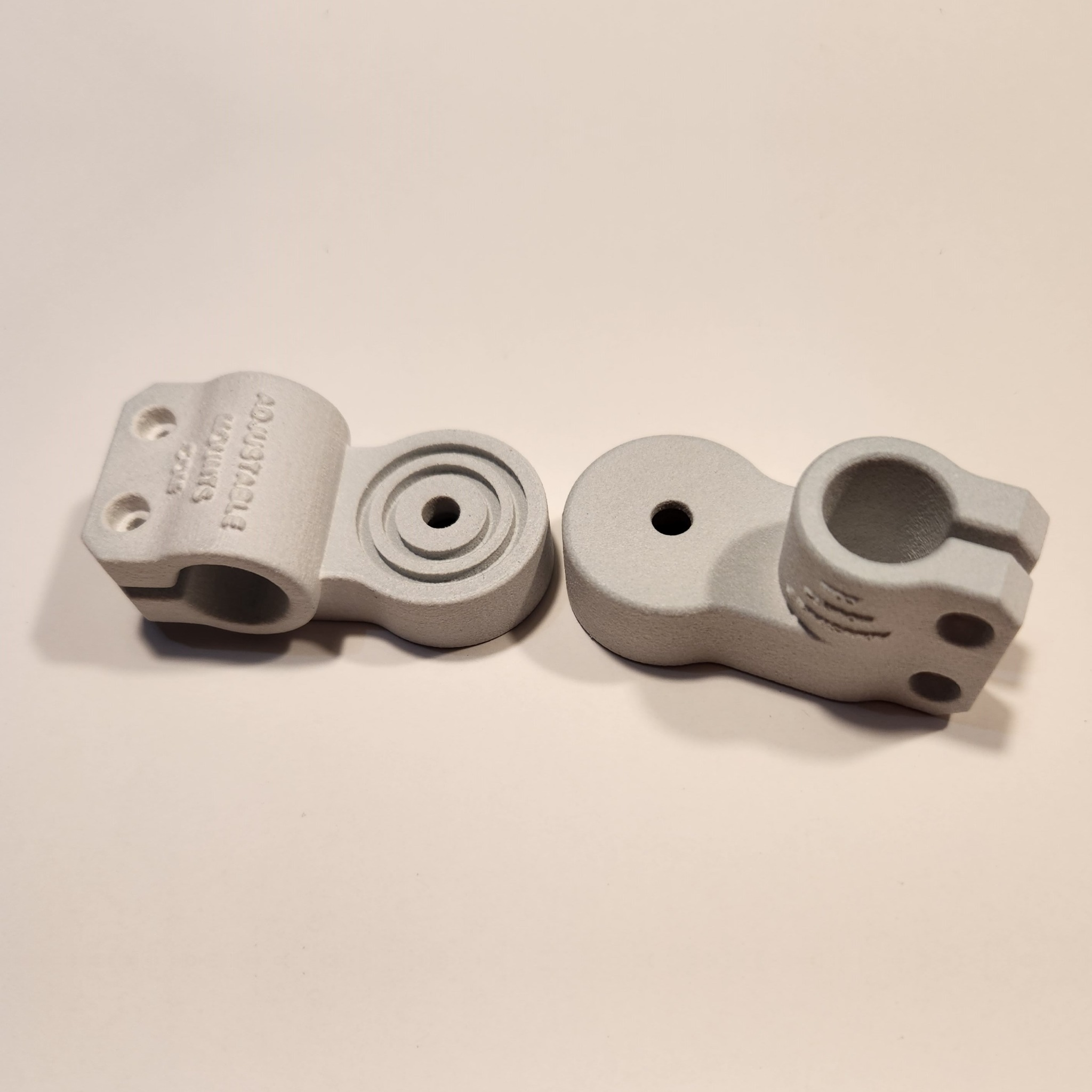

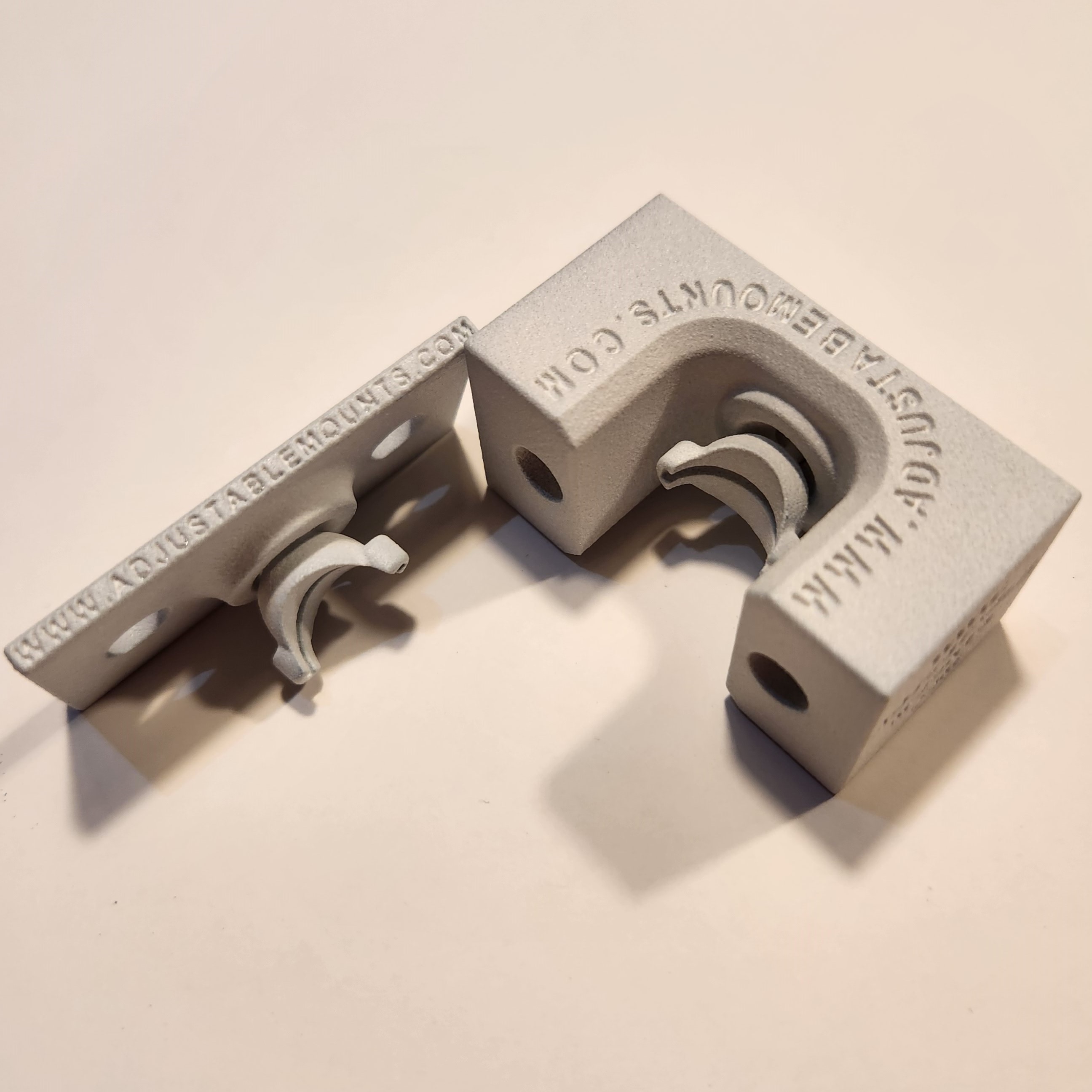

Available in six configurations across two material lines (a lighter 3D-printed nylon line and a more rigid aluminum-hardware line), with or without an inline 90° direction change. Rod length is a separate choice: 6″ and 12″ standard at launch, with an 18″ option and room to grow up to 24″ as demand requires. Each configuration ships as a matched set, unassembled with hardware bagged separately, and order 2 or more to unlock volume pricing.
FAQ
Common Questions
Yes, individual components like the rail clamp or mounting head are also available separately in our store. If your kit arrives missing a part, contact us and we'll ship a replacement for whatever's missing.
The plastic line (HP Multi Jet Fusion 3D-printed Nylon 12, black) is lighter and sized for cameras, sensors, and lighting. The aluminum line swaps in aluminum rod and ball-stud hardware for extra rigidity on longer reaches or heavier equipment.
Standard T-slot/8020-style rail via a standard T-nut, across common profile sizes. The universal mounting bracket end also works on a flat wall with two tapped holes, independent of rail.
We don't publish a maximum load spec: it depends on rod diameter, length, and configuration. Once hand-tightened, the pinch lock holds its set position under vibration and repeated repositioning. Contact us to talk through your specific application.

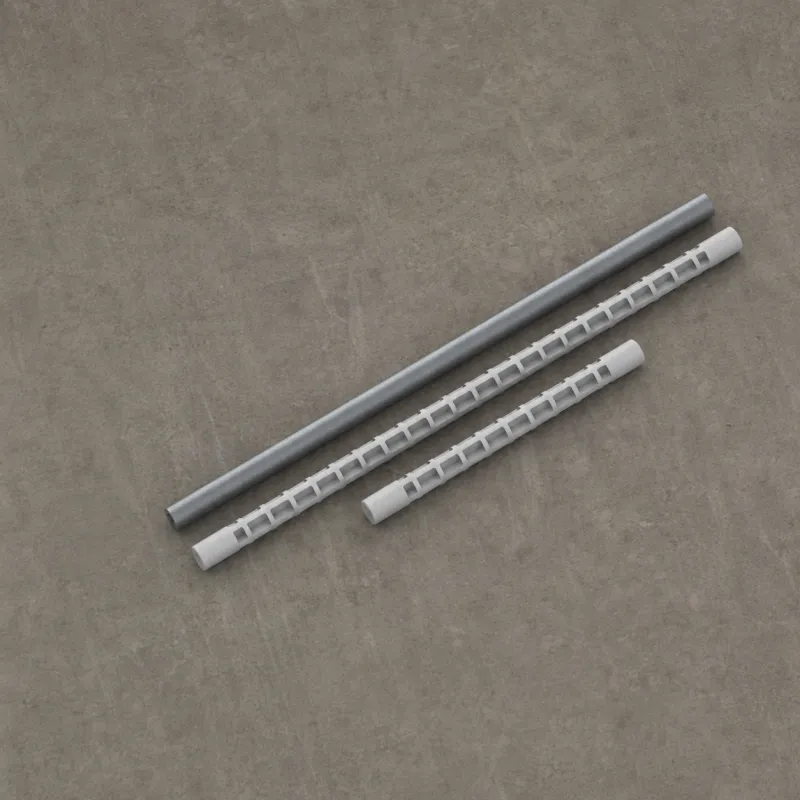

Standard rod lengths are 6″ and 12″ at launch (an 18″ option is planned, with room to grow up to 24″), and the rod itself scales from ½″ up to 2″+ in diameter. Custom colors are available at MOQ with premium pricing (black is standard at launch). Contact us for volume and custom-spec pricing.
No, every configuration ships unassembled, with all hardware bagged separately, to keep packaging compact. Assembly is quick and only requires a 3/32″ hex/Allen wrench.
Yes, volume pricing starts at 2 units. Contact us for current volume rates.
Ready to Mount It?
One kit covers rail mounting, angle adjustment, and tool-free repositioning. See it up close.
Shop the KitAdjustable Mount: Complete Kit
